The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can
be widely used in cloud computing, virtualization, databases, and
big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing
large-capacity local storage resources. It incorporates patented
technologies, such as DEMT and FDM, and integrates FusionDirector
software for entire-lifecycle management, helping customers drive
down OPEX and improve ROI.
| FusionServer 2288H V6 | |

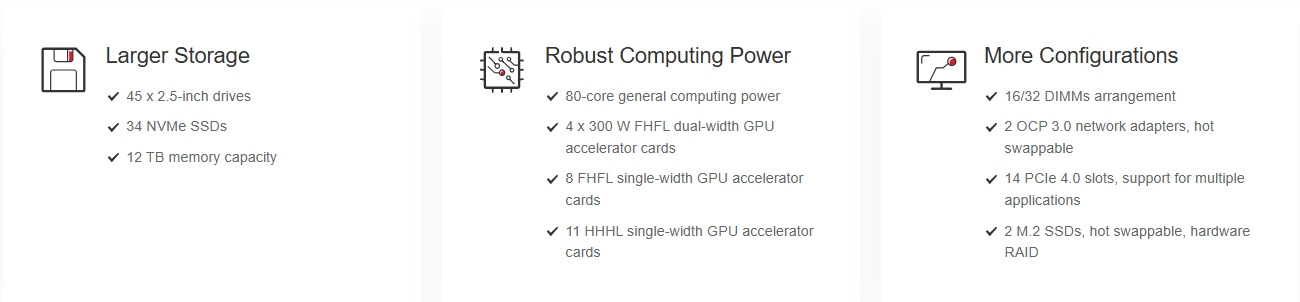

| Local Storage | Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • 2 x M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hots wappable function supported |
| PCIe Expansion | Provides up to 14 PCIe 4.0 expansion slots for a variety of applications. |
| Power Supply | • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), ASHRAE Class A1/A2/A3/A4 compliant |
| Installation Kit | Supports L-shaped guide rails, adjustable guide rails, and holding rails. |

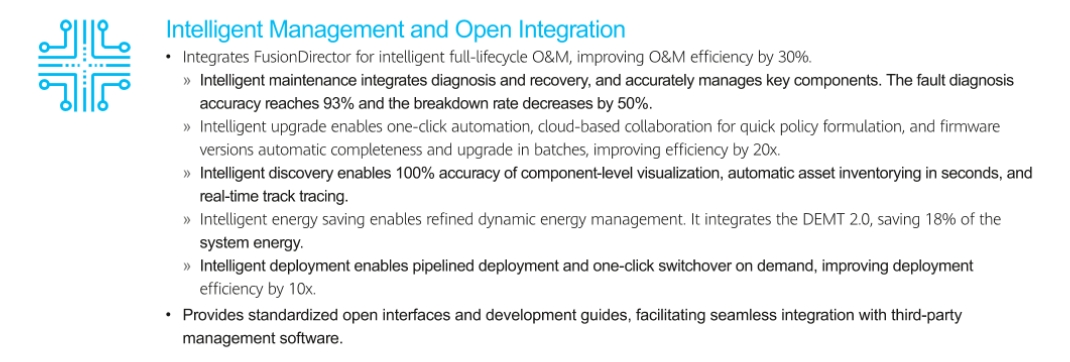

Management | The BMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. • The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five intelligent technologies,realizing intelligent, automatic, visualized, and refined management throughout the lifecycle |
|
|
