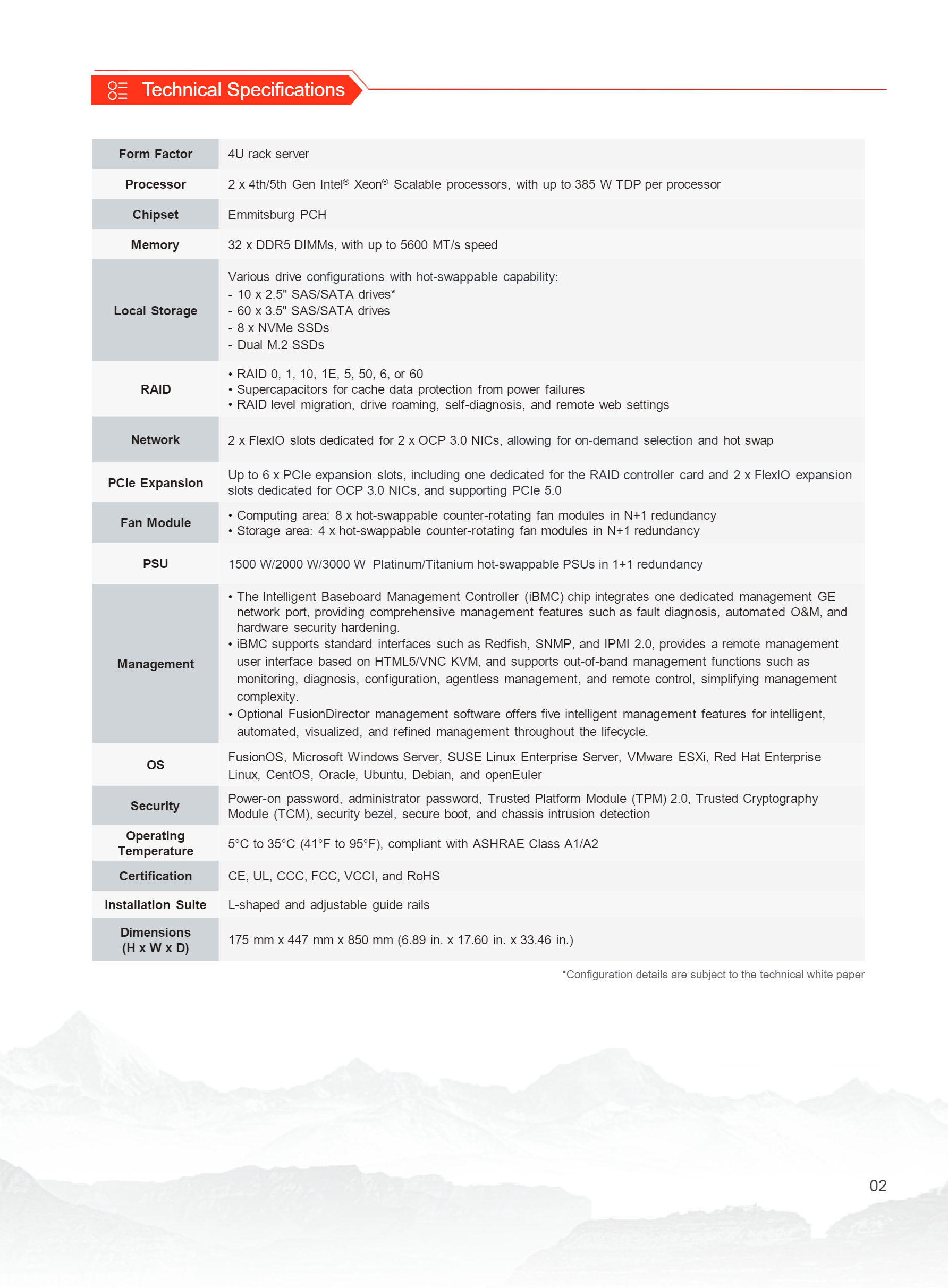

4U rack server

2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385W TDP per processor

Emmitsburg PCH

32 x DDR5 DIMMs, with up to 5600 MT/s speed

Various drive configurations with hot-swappable capability:

• 10 x 2.5″ SAS/SATA drives*
• 60 x 3.5″ SAS/SATA drives
• 8 x NVMe SSDs
• Dual M.2 SSDs

• RAID 0, 1, 10, 1E, 5, 50, 6, or 60
• Supercapacitors for cache data protection from power failures
• RAID level migration, drive roaming, self-diagnosis, and remote web settings

2 x FlexIO slots dedicated for 2 x OCP 3.0 NICs, allowing for on-demand selection and hot swap

Up to 6 x PCIe expansion slots, including one dedicated for the RAID controller card and 2 x FlexIO expansion slots dedicated for OCP 3.0 NICs, and supporting PCIe 5.0

• Computing area: 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
• Storage area: 4 x hot-swappable counter-rotating fan modules in N+1 redundancy

1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

• The Intelligent Baseboard Management Controller (iBMC) chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless management, and remote control, simplifying management complexity.
• Optional FusionDirector management software offers five intelligent management features for intelligent, automated, visualized, and refined management throughout the lifecycle.

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. For more, click here

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, Trusted Cryptography Module (TCM), security bezel, secure boot, and chassis intrusion detection

5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2

CE, UL, CCC, FCC, VCCI, and RoHS

L-shaped and adjustable guide rails

175 mm x 447 mm x 850 mm (6.89 in. x 17.60 in. x 33.46 in.)
