Main application scenarios:
Digital currency
Cool data storage
SDS
Video storage
• FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
• 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
Ultra-large Storage
Supports 44 x 3.5" drives + 4 x NVMe U.2 SSDs
Flexible Configuration
Supports up to 10 x standard PCIe slots
Supreme Computing Power

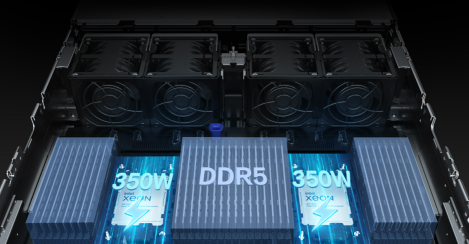

4th or 5th Gen Intel® Xeon® Scalable processors with 385 W TDP per processor, and 32 x DDR5 DIMMs
4U rack server
1 or 2 x 4th/5th Gen Intel® Xeon®Scalable processors, with up to 385 W TDP per processor
Emmitsburg PCH
32 x DDR5 DIMMs, with up to 5600 MT/s speed
Hot-swappable drive configurations:
• 4 x 2.5ʺ SAS/SATA drives/SSDs
• 24 to 44 x 3.5ʺ SAS/SATA drives
• 4 x NVMe SSDs
Flash storage:
• 2 x M.2 SSDs
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Expansion capability for multiple types of networks
OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported
Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported
8 x single-width GPU cards*
6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
5ºC to 35ºC (41ºF to 95ºF), Class A1/A2
CE, UL, CCC, FCC, VCCI, and RoHS
L-shaped guide rails, adjustable guide rails, and holding rails
Chassis with 3.5ʺ drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.)
|
|
