OEM Storage Huawei Fusion Server 5885H V7 For IDC Enterprise Business

Ask Lasest Price
Price :	Determine based on market prices
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Brand Name :	Huawei
Model Number :	5885H V7
Supply Ability :	/pieces >=2 pieces
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

OEM Storage Huawei Fusion Server 5885H V7 For IDC Enterprise Business

4U 4-Socket Rack Server

Main application scenarios:

High performance database (OLAP/OLTP)

Big data

• FusionServer 5885H V7 (5885H V7) is a 4U 4-socket mission critical rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications.

• It is also ideal for various applications, such as databases, virtualization, and in-memory computing.

• 5885H V7 features high-performance computing, large-storage capacity, low power consumption, high scalability and reliability, easy deployment, and simplified management.

FusionServer 5885H V7
Internal Storage	Hot-swappable drive configurations: • 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives • 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs • 24 x front NVMe SSDs • 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs • 36 x front E1.S SSDs • Up to 52 x 2.5″ drives Flash storage: • 2 x M.2 SSDs, supporting hardware RAID
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Multiple network expansion capabilities 1 x OCP 3.0 NIC, supporting hot swap
PCIe Expansion	Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots
Power Supply	900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 2+2 redundancy
Operating Temperature	5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4
Installation Kit	L-shaped guide rails, adjustable guide rails, and holding rails
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

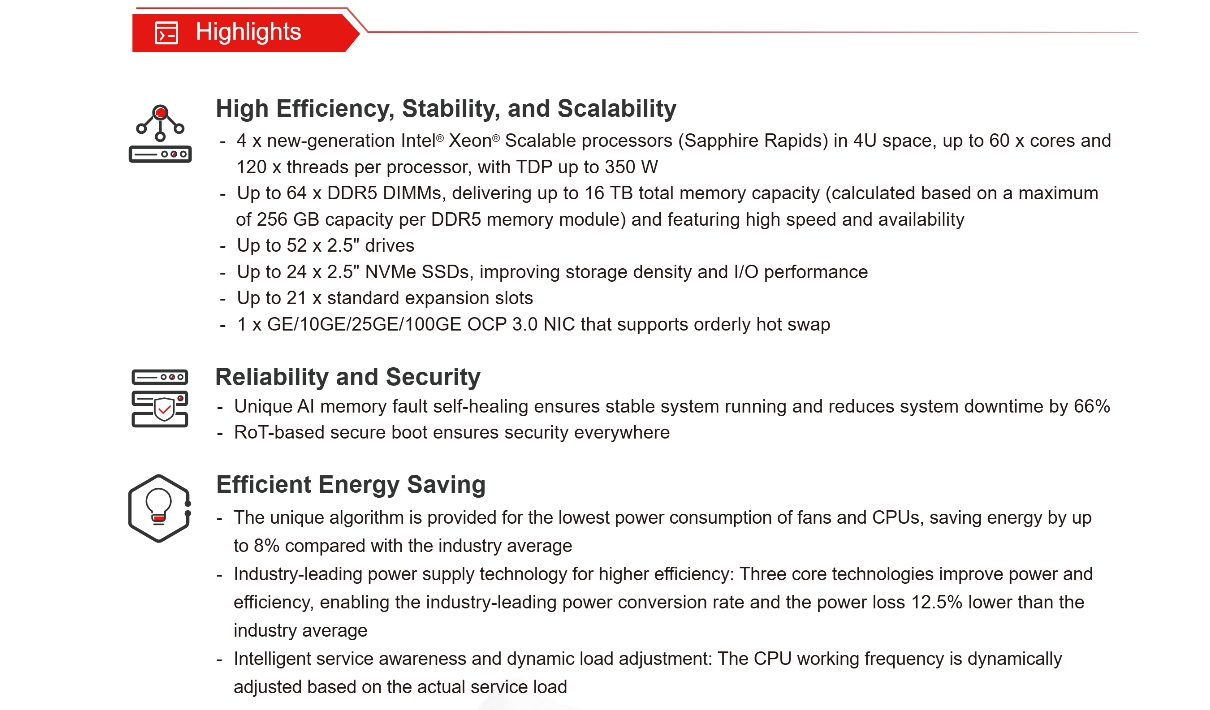

Key Applications

99.9999% System Availability

Exclusive standalone RAS and industry-leading system HA

Robust Computing Power

Unique tuning technology and SPEC deliver industry-leading performance

Rich Configurations

Supports standard PCIe slots and SAS/SATA/NVMe drives

High Reliability and Security

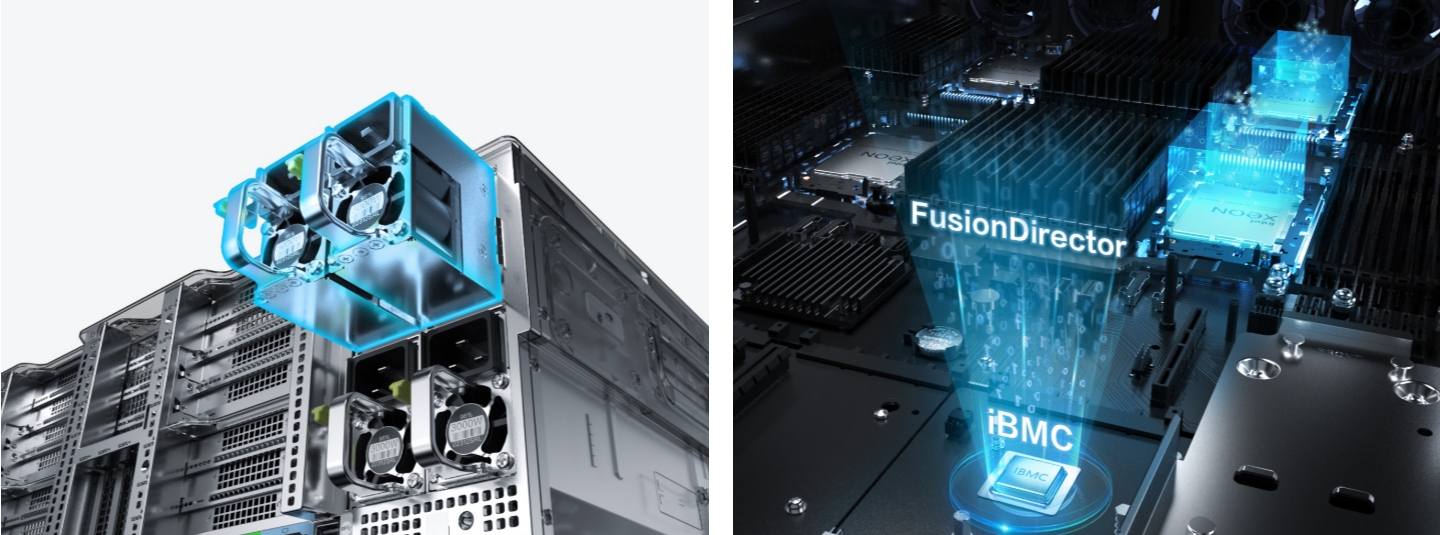

Highly Reliable Power Supply Capability

Up to 6000 W power redundancy takes the lead in the industry

66% Less System Downtime

Unique AI memory fault self-healing ensures stable system running

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Intelligent Service Awareness, Dynamic Load Adjustment

The CPU working frequency is dynamically adjusted based on the actual service load
