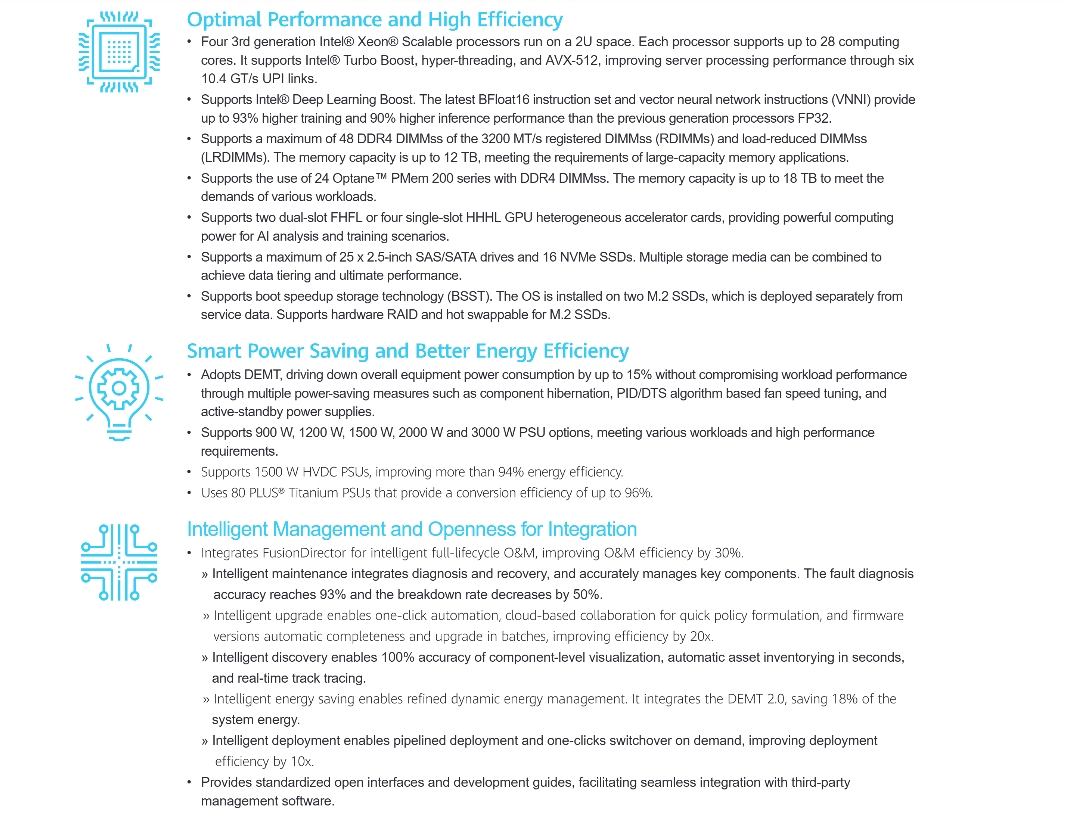

FusionServer 2488H V6 is the lastest 2U, 4-socket (4S) rack server, ideal for computing-intensive scenarios such as cloud computing, virtualization, high-performance computing (HPC), database, and SAP HANA. In virtualization scenarios, the OPEX of one FusionServer 2488H V6 is lower than that of two 2U, 2S rack servers. The 2488H V6 houses four 3rd Gen Intel® Xeon® Scalable processors in a 2U space, and supports 48 DDR4 DIMMs, 11 PCIe slots, and up to 25 x 2.5'' drives for local storage. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and can be configured with FusionDirector software for entire-lifecycle management, helping drive down OPEX and improve ROI.
| FusionServer 2488H V6 | |

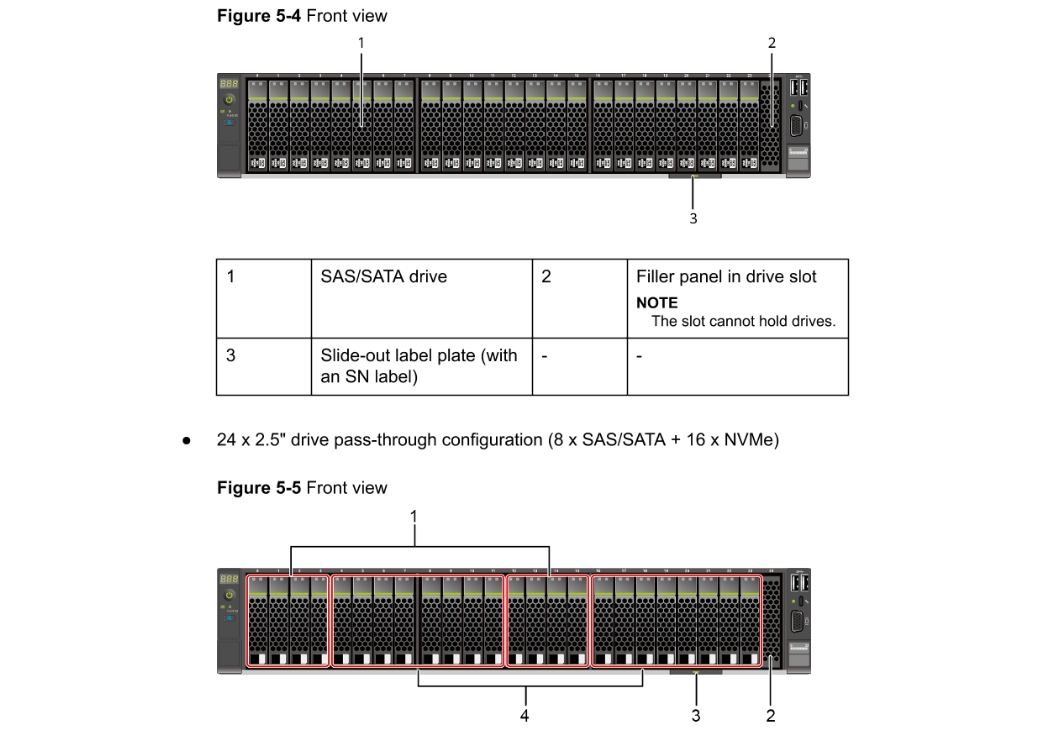

| Internal Storage | Supports hot-pluggable drives with the following configuration options: • 8 x 2.5” front SAS/SATA/NVME drives • 24 x 2.5” front SAS/SATA drives • 25 x 2.5” front SAS/SATA drives • 4 x 2.5” front SAS/SATA drives and 8 x 2.5” NVMe SSDs • 4 x 2.5” front SAS/SATA drives and 16 x 2.5” NVMe SSDs Flash storage: • 2 x M.2 SSDs |
| RAID Support | RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network | Multiple network expansion capabilities 1 x OCP 3.0 NIC, supporting hot swap |
| PCIe Expansion | Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC |
| Power Supply | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W HVDC PSUs (input: 260 V to 400 V AC) • 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC) |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Installation Kit | Adjustable guide rails, holding rails, and cable management arms (CMAs) |
Management | • BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. • BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management |
|
|
