| Brand Name : | D E L L |
| Model Number : | R750 |
| Price : | Contact us |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | /pieces >=2 pieces |
| Delivery Time : | 3-5 working days |

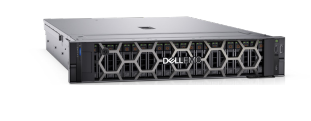

The Dell PowerEdge R750, is a full-featured enterprise server, delivering outstanding performance for the most demanding workloads.
Innovate at scale with challenging and emerging workloads
The Dell PowerEdge R750, powered by the 3rd Generation Intel® Xeon® Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R750 supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R750 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, Highperformance computing (HPC), Traditional corporate IT, Virtual Desktop Infrastructure, and AI/ML environments that require performance, extensive storage and GPU support.
| Feature | PowerEdge R750 |
| CPU | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| CPU Interconnect | Intel Ultra Path Interconnect (UPI) |
| Memory | 32x DDR4 RDIMM, LRDIMM 16x PMem ( Intel Optane Persistent Memory 200 Series) |
| Storage Drives | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Storage Controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| NVMe | Up to 24x NVMe drives |
| PCIe | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
| LOM | 2x 1Gb |
| Networking | OCP 3.0 (x8 PCIe) |
| USB Ports | Front: 1 ports (USB 2.0), 1 dedicated (micro-USB) Rear: 2 ports (Bottom: USB 3.0, Top: USB 2.0) Internal: 1 port (USB 3.0) for IDSDM/ internal USB cards up-sell option |
| Rack Height | 2U |
| Power Supplies | 700 W Titanium HLAC/240 mixed mode • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1100 W DC -48 - -60 V • 1400 W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode |
| System Management | LC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore |
| Internal GPU | Up to 2x double width, FH, FL (300W each) Up to 4x16 single width, FH, FL (150W each) or 6x8 PCIe single width FH, FL (75W each) Up to 6x single width, LP/FH, HL (75W each) |
| Availability | Hot-plug Drives Hot-plug Redundant Cooling Hot-plug Redundant Power Supplies IDSDM Hot-plug BOSS S2 BOSS S1 |
| Other | Operating System and Hypervisors • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport. OEM-ready version available From bezel to BIOS to pac |
Chassis views and features
Front view of the system
Figure 1. Front view of the R750, 24x 2.5 inches Chassis
Figure 2. 24x SAS/SATA or 24x NVMe
Figure 3. 16x SAS/SATA + 8x NVMe
Figure 4. Front view of the R750, 16x 2.5 inches SAS/SATA Chassis
Figure 5. Front view of the R750, 16x 2.5 inches SAS/SATA Chassis
Figure 6. Front view of the R750, 8x 2.5 inches Chassis
Figure 7. Front view of the R750, 8x 2.5 inches Chassis
Figure 8. Front View of the R750, 12x 3.5 inches SAS/SATA Chassis
Figure 9. Front View of the R750, 12x 3.5 inches SAS/SATA Chassis
Rear view of the system
Figure 10. Rear view of the R750 with 2x 2.5 inches storage drives,
6x PCIe Gen4 slots and Hot-plug BOSS

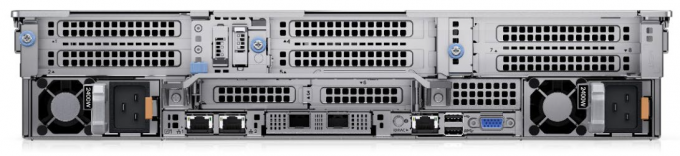

Figure 11. Rear view of the R750 with 8x PCIe Gen4 slots and
Hot-plug BOSS

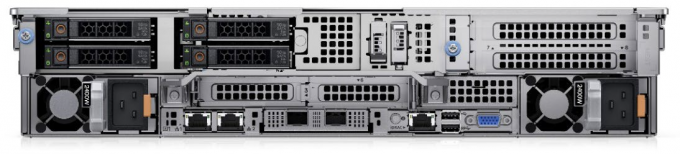

Figure 12. Rear view of the R750 with 4x 2.5 inches storage drives, 4x PCIe Gen4 slot and Hot-plug BOSS
Inside the system
Recommended support and services Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit Dell.com/ ServiceDescriptions. Dell Technologies on Demand Consume technology, infrastructure and services any way you want with Dell Technologies on Demand, the industry’s broadest end-to-end portfolio of flexible consumption and as-a-Service solutions. For more information, visit: www. delltechnologies.com/ondemand.
|
|
