POWEREDGE R740xd2 Enterprise Content Server
Respond effectively to data growthThe Dell EMC PowerEdge R740xd2 gives you the capacity to grow and helps you save space in a 2U rack.Flexible storage and performance options help you meet increasing business and data demands.
• Support large data sets like high-definition videos, SDS or large mailboxes with up to 26 3.5” drives.
• Drive consistent performance results with up to two 2nd Generation Intel® Xeon® Scalable processors.
• Balance performance and cost by choosing a combination of SSDs and HDDs.
• Minimize delays with fast networking options and up to 16 DIMMS of memory.
• Easily expand with up to 5 PCIe slots.Simplify data center managementThe Dell EMC OpenManage portfolio helps you spend less time on routine maintenance so you can focuson other priorities.
• Rapidly deploy configurations with your unique requirements on multiple servers.
• Provide full lifecycle management including firmware updates and automated issue resolution.
• Show status and set alerts for all attached physical and virtual disks through a single interface.
• Easily integrate with VMware vCenter or Microsoft System Center (SC).
| Technology | Detailed Description |
| 2nd Generation Intel® Xeon® Processor Scalable Family | The 2nd Generation Intel® Xeon® processor scalable family has
advanced features that deliver exceptional performance and value. See the processors section for more information . |
| Intel® C621 Chipset Series | The R740xd2 incorporates the Intel® Platform Controller Hub (PCH)
chip. See the chipset section for more information. |
| 2666 MT/s and 2933 MT/s DDR4 Memory | The Intel® Xeon® processor scalable family supports memories 2666
MT/s and 2933 MT/s (since April 2021). The R740xd2 supports two DIMMs per channel at 2666 MT/s and 2933 MT/s (since April 2021) with these processors. See the memory section for more information. |
| iDRAC9 w/ Lifecycle Controller | The embedded systems management solution for Dell EMC Servers
features hardware and firmware inventory and alerting, in- depth memory alerting, faster performance, a dedicated gigabit port and many more features. |
Product Specifications
| Features | Specifications |
| Form Factor | 2U |
| Scalability (Sockets) | 2 sockets |
| Processors | 2nd Generation Intel® Xeon® Scalable processor server CPU |
| Processor TDP | Up to 140 W |
| Processor Cores | Up to 22 |
| Chipset | Intel® C621 chipset |
| VGA | Embedded in BMC (integrated VGA chip) |
| Memory technology | 8GB/16GB/32GB/64GB DDR4 |
| DIMMs per socket (total DIMMs) | 16 DIMM slots |
| DIMM Type | RDIMM |
| Memory Bandwidth | 2666 MT/s and 2933 MT/s (since April 2021) |
| PCIe slots | Up to 5 x Gen3 slots (3 x16 + 2 x4) |
| PCIe Gen | Gen 3 |
| Power supplies | ● Platinum: 750 W or 1100 W ● HVDC: 750 W or 1100 W hot plug power supplies with full redundancy option ● Mixed mode: 750 W AC and DC ● 6 fans with N +1 redundancy |
| USB Front | 2 x USB 2.0 : Micro USB iDRAC x1 + 1 x USB 2.0 |
| USB Rear | 2 x USB 3.0 |
| USB Internal | 1 x USB 3.0 |
| Serial Port | Yes |
| Video | Yes, 1x standard VGA (Rear) |
| SATA ports (from PCH) | Up to 12 SATA ports. 2 rear drives onboard SATA Support |
| Disk Drives | ● 3.5" hard disk drives/2.5" SSD drives with 3.5" carrier, hot
pluggable. ● Front drive bays: Up to 24 x 3.5” SAS/ SATA (HDD) max 384 TB, or up 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS (SSD) max 317.44 TB ● Rear drive bays: Up to 2 x 3.5” SAS SATA (HDD) max 32 TB or up to 2 x 2.5” SAS (SSD) drives max 15.36TB. |
| Storage controllers | ● Internal Controllers: PERC H330, H730P, H740P ● Software RAID (SWRAID): S140 ● Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs, 240 GB or 480 GB ● 12 Gbps SAS HBAs (non-RAID): Internal - HBA330 ● PERC HBA355e (External) |
| Optical Drive | Optional external USB DVD-ROM |
| Embedded Management (Remote) | iDRAC9 with Lifecycle Controller |
| Systems Management | OpenManage, iDRAC |
Chassis views and features
Front view of the system
Figure 1. Front view of 24 x 3.5-inch drive system
1. Left control panel
2. Drives (12)
3. Right control panel
4. Right release latch
5. Left release latch
Rear view of the system

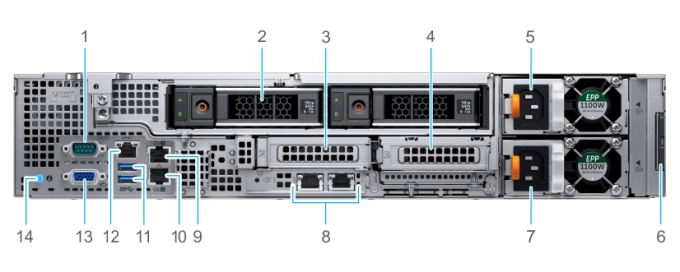

Figure 2. Back panel features of 2 x 3.5-inch (rear) drive system
with low-profile risers
1. Serial port
2. Drives (2)
3. Low-profile riser 1 (slot 2)
4. Low-profile riser 2 (slot 3)
5. Power supply unit (PSU 1)
6. Information tag
7. Power supply unit (PSU 2)
8. LOM ethernet port (2)
9. Ethernet port (Gb1)
10. Ethernet port (Gb2)
11. USB 3.0 port (2)
12. iDRAC9 dedicated network port
13. VGA port
14. System identification button
Figure 3. Back panel features of 2 x 3.5-inch (rear) drive system
with full-height riser
1. Serial port
2. Drive (2)
3. Full-height riser slot (slot 2)
4. Power supply unit (PSU 1)
5. Information tag
6. Power supply unit (PSU 2)
7. LOM ethernet port (2)
8. Ethernet port (Gb1)
9. Ethernet port (Gb2)
10. USB 3.0 port (2)
11. iDRAC9 dedicated network port
12. VGA port
13. System identification button
Figure 4. Back panel features of system with butterfly riser
1. Serial port
2. Butterfly riser full-height (slot 2)
3. Butterfly riser low-profile (slot 3)
4. Low-profile PCIe expansion card (slot 4)
5. Low-profile PCIe expansion card (slot 5)
6. Low-profile PCIe expansion card (slot 6)
7. Power supply unit (PSU 1)
8. Information tag
9. Power supply unit (PSU 2)
10. LOM ethernet port (2)
11. Ethernet port (Gb1)
12. Ethernet port (Gb2)
13. USB 3.0 port (2)
14. iDRAC9 dedicated network port
15. VGA port 16. System identification button
Figure 5. Back panel features of system without risers
1. Serial port
2. Low-profile PCIe expansion card (slot 4)
3. Low-profile PCIe expansion card (slot 5)
4. Low-profile PCIe expansion card (slot 6)
5. Power supply unit (PSU 1)
6. Information tag
7. Power supply unit (PSU 2)
8. LOM ethernet port (2)
9. Ethernet port (Gb1)
10. Ethernet port (Gb2)
11. USB 3.0 port (2)
12. iDRAC9 dedicated network port
13. VGA port 14. System identification button
Inside the system

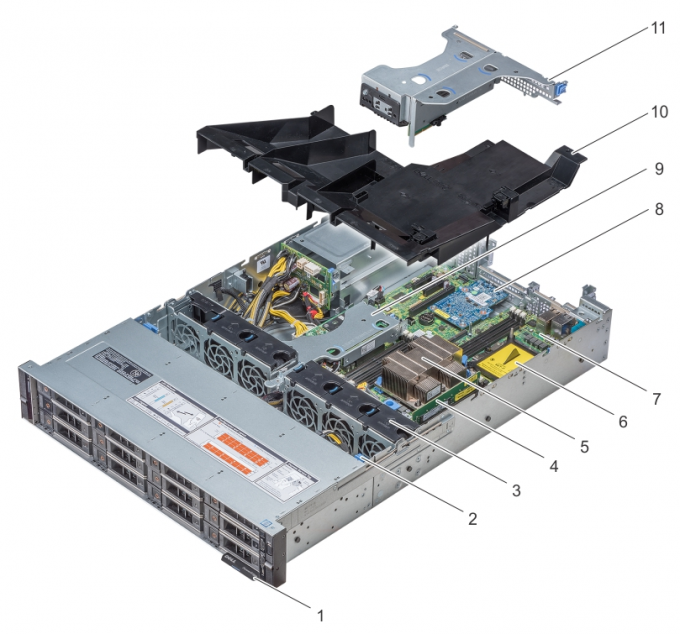

Figure 6. Inside the system without rear drive cage

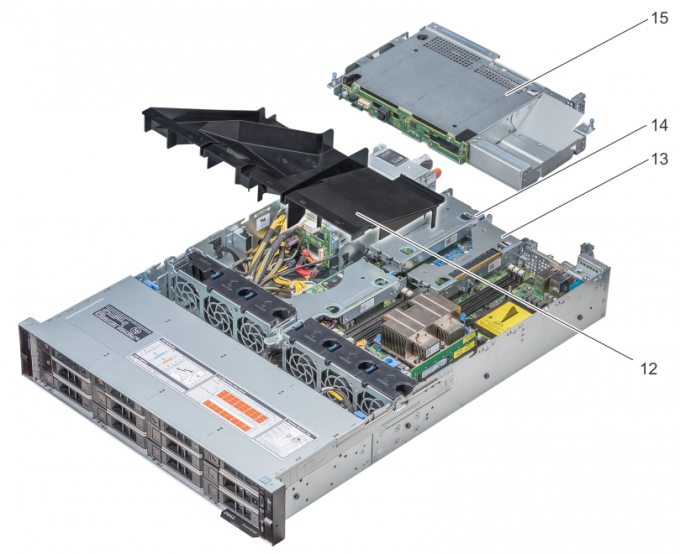

Figure 7. Inside the system with rear drive cage
1. Information tag
2. Drive backplane
3. Cooling fans
4. Memory module
5. CPU 1 6. CPU
2 socket
7. System board
8. LOM riser card
9. Internal PERC riser
10. Air shroud
11. Butterfly riser
12. Air shroud (24 x 3.5 inch + 2 x 3.5 inch rear hard drive
system)
13. Low profile riser right
14. Low profile riser left
15. Drive cage (rear)
|
|
