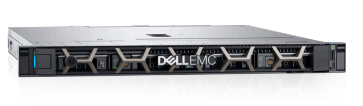

POWEREDGE R240 PowerEdge R240
• Boost performance with 50% more cores • Scale with 17% more storage capacity • Protect your servers from malware with iDRAC9 Enterprise Server Lockdown Mode Computing Made Simple Dell EMC PowerEdge R240 It is an affordable single-socket 1U rack server designed for small businesses and service providers.

Designed for the budget-conscious business Designed for dense environments, the Dell EMC PowerEdge R240 is the ideal solution for the budget-conscious business. The R240 provides features to support your demanding and growing business needs. • The Intel® Xeon® E-2100 processor has 50% more cores, 11% faster memory, and 20% more PCIe lanes, all of which combine to increase performance to speed up your business. 1 • Easily manage data growth with up to four 3.5-inch cable-connected hard drives. • Manage operational costs with multi-vector cooling that automatically calculates and delivers the appropriate airflow required for ideal cooling. Easy to install, manage and deploy The Dell OpenManage portfolio offers a range of innovations that simplify management tasks to enable effective and cost-effective IT operations across the entire server lifecycle. • Embedded iDRAC9 with Lifecycle Controller, server deployment, configuration and updates is fast and worry-free. • Access your servers from anywhere using your

• Base:
• PowerEdge R240 Server
• Form Factor:
  1U Rack Server
• Processor:
  1 processor from the following :
  Intel® Xeon® E-2200 product family
  Intel Pentium®
  Intel Core i3®
  Intel Celeron®
• Dimensions & Weight:
  Chassis width: 434.00mm (17.08 in)
  Chassis depth: 595.63mm (23.45 in) (3.5” HHD config)
  These dimensions do not include: bezel, redundant PSU
  Chassis weight: 12.2 kg (26.89 lb.)
• Storage Controllers:
  Internal controllers: PERC H730P, H330, HBA330
  Software RAID: PERC S140
  External HBAs: 12Gbps SAS HBA (non-RAID)
• Internal Boot:
  Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
  Internal Dual SD Module: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
• Drive Bays:
  Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD*
  Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD*
  *Available in the hot-plug configuration
• Memory:
  4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
• Embedded Management:
  iDRAC9 with Lifecycle Controller
  iDRAC Direct
  iDRAC RESTful API with Redfish
• OpenManage™ Software:
  OpenManage Enterprise
  OpenManage Power Manager
  OpenManage Mobile
• Integrations and Connections:
  Integrations:
  Microsoft® System Center
  VMware® vCenter™
  BMC Truesight (available from BMC)
  Red Hat Ansible
  Connections:
  Nagios Core & Nagios XI
  Micro Focus Operations Manager i (OMi)
  IBM Tivoli Netcool/OMNIbus
• Tools:
  iDRAC Service Module
  OpenManage Server Administrator
  Dell EMC Repository Manager
  Dell EMC System Update
  Dell EMC Server Update Utility
  Dell EMC Update Catalogs
  Dell EMC RACADM CLI
  IPMI Tool
• Power Supplies:
  Single 250W (Bronze) or 450W (Platinum) power supply
• Bezel:
  Optional security bezel
• Security:
  TPM 1.2/2.0 optional
  Cryptographically signed firmware
  Silicon Root of Trust
  Secure Boot
  System Lockdown (requires OpenManage Enterprise)
  System Erase
• I/O & Ports:
  Networking Options: 2 x 1GbE LOM Network Interface Controller (NIC) ports
  Front Ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port
  Rear Ports: 2 x USB 3.0, VGA, serial connector
  2x PCIe Gen 3.0 slots:
  One x8 slot low-profile, half-length with x4 slot width
  One x16 slot low-profile/full-height, half-length with x8 bandwith
• Supported Operating Systems:
  Citrix® XenServer®
  Microsoft® Windows Server® with Hyper-V (2016 and 2019)
  Red Hat® Enterprise Linux
  Ubuntu® Server LTS
  SUSE® Linux Enterprise Server
  VMware® ESXi
