Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

Ask Lasest Price
Price :	$1
Payment Terms :	L/C, D/A, D/P, T/T, Western Union

Add to Cart

Product Details
Company Profile

Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

PowerEdge T350

The Dell PowerEdge T350 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features.

Your Innovation Engine for businesses of all sizes

The Dell PowerEdge T350, powered by Intel® Xeon® E-2300 processors, delivers increased performance and is designed for productivity and data-intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB UDIMMs, up to 128 GB for memory-intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge T350 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. With a smaller chassis design that reduces the size by 37% without losing any features or performance, the PowerEdge T350 is ideal for use inside or outside the data center. The PowerEdge T350 addresses business critical workloads including database management, as well as cloud infrastructure needs and point of sale transactions.

Increase efficiency and accelerate operations with autonomous compute infrastructure

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT

infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience

by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage

portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and

protect your technology environment.

• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility

and control for better server management

• Intelligent automation lets you enable cooperation between human actions and system capabilities for

added productivity

• Integrated change management capabilities for update planning and seamless, zero-touch configuration

and implementation

• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell PowerEdge T350 server is designed with a cyber-resilient architecture, integrating security deeply into every

phase in the lifecycle, from design to retirement.

• Operate your workloads on a secure platform anchored by

cryptographically trusted booting and silicon root of trust

• Maintain server firmware safety with digitally signed firmware

packages

• Prevent unauthorized configuration or firmware change with

system lockdown

• Securely and quickly wipe all data from storage media, including

hard drives, SSDs, and system memory with System Erase

• UEFI Secure Boot prevents systems from booting from unsigned

or unauthorized pre-boot device firmware, applications, and OS

boot loaders, protecting systems from malware corrupting the

startup process

Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

T350	Technical Specification
Processor	One Intel Xeon E-2300 Series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores
Memory	• 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Storage controllers	• Internal Controllers (RAID): PERC H755, PERC H355, PERC H345, HBA355i, S150 • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or internal USB 3.0 • External PERC (RAID): N/A • External HBAs (non-RAID): HBA355e
Drive bays	Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) • Up tp 8 x 3.5-inch SAS/SATA (HDD/SSD) • Max 160 TB on 8 HDD configuration Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier.
Power supplies	• 450 W Bronze (cabled) AC/100 - 240 V • 600 W Platinum AC/100 - 240 V • 600 W DC/240 V • 700 W Titanium AC/100 - 240 V • 700 W DC/240 V
Dimensions	•Height – 382.5 mm (15.06 inches) • Width – 175 mm (6.89 inches) • Depth – 581.12 mm (22.88 inches) with bezel
Embedded management	•iDRAC9 • iDRAC Direct • iDRAC RESTful with Redfish • iDRAC Service Module
Ports	Front Ports • 1 x Dedicated iDRAC (Micro-AB USB) port • 1 x USB 3.0	Rear Ports • 5 x USB 2.0 • 1 x iDRAC dedicated port • 1 x USB 3.0 • 1 x VGA • 1 x Serial
	Internal Ports • 1 x USB 3.0 (optional)
PCIe	2 x Gen 4 PCIe slots and 2 x Gen 3 PCIe slot

System overview

The Dell™ PowerEdge™ T350 is Dell's latest single-socket, entry-level 4.5U scalable tower server that is purposely designed to

serve general-purpose business applications for both Small and Medium Businesses (SMB) and Remote Office / Branch Office

(ROBO).

The system features:

● One Intel® Xeon® E-2300 series processor with up to 8 cores per processor

● Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s

● Up to 8 x 3.5-inch SAS/SATA HDD/SSD drives

● Front access hot-plug BOSS -S2

● Internal Boot: IDSDM or internal USB board

● RAID: PERC 10.5 and PERC 11 SW and HW RAID

● Onboard LOM 1GbE x2

● PCI Express® (PCIe) 4.0 expansion slots

● iDRAC9 with Lifecycle controller; Express, Enterprise, Datacenter, and OME advanced feature

● Cabled AC or two redundant Hot-plug AC/DC power supply units

Chassis views

Front view of the system

Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

Figure 1. Front view of the 8 x 3.5-inch drive system

1. BOSS S2 module (optional)

2. Power button

3. Information tag

4. System health and ID indicator

5. USB 3.0 port

6. iDRAC Direct port (Micro-AB USB)

7. Optical drive (optional)

8. Drives (8)

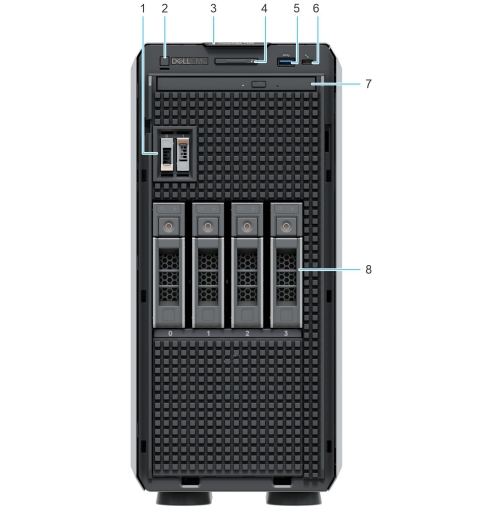

Figure 2. Front view of the 4 x 3.5-inch drive system

1. BOSS S2 module (optional)

2. Power button

3. Information tag

4. System health and ID indicator

5. USB 3.0 port

6. iDRAC Direct port (Micro-AB USB)

7. Optical drive (optional)

8. Drives (4)

Rear view of the system

Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

Figure 3. Rear view of the system with redundant PSU

1. Power supply unit (PSU 1)

2. Power supply unit (PSU 2)

3. PCIe expansion card slots (4)

4. USB 2.0 port (4)

5. System identification button

6. NIC port (1)

7. USB 3.0 port (1)

8. USB 2.0 port (1)

9. NIC port (2)

10. iDRAC ethernet port

11. VGA port

12. Serial port

Figure 4. Rear view of the system with cable PSU

1. Cabled power supply unit

2. PCIe expansion card slots (4)

3. USB 2.0 port (4)

4. System identification button

5. NIC port (1)

6. USB 3.0 port (1)

7. USB 2.0 port (1)

8. NIC port (2)

9. iDRAC ethernet port

10. VGA port

11. Serial port

Inside the system

Intel Xeon 4U Rackmount EMC Dell Poweredge Server T350 600W

Figure 5. Inside the system with redundant PSU

1. PIB (Power Interface Board) 2. PSU

3. PCIe expansion card 4. System board

5. Intrusion switch 6. Cooling fan

7. Memory module sockets 8. Heat sink

9. Backplane

Figure 6. Inside the system with cabled PSU

1. Cabled PSU 2. PCIe expansion card

3. System board 4. Intrusion switch

5. Cooling fan 6. Memory module sockets

7. Heat sink 8. IDSDM / USB card (optional)

9. Backplane
