The Dell EMC PowerEdge R650xs, with 3rd generation Intel® Xeon® Scalable processors, designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities
Innovate at scale with challenging and emerging workloads The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that’s purpose-built to maximize value with distinctive feature sets for scale-out environments. With it, you can:
• Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per socket
• Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec • Improve throughput, reduce latency: Up to 3 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support • Include flexible storage: Up to 4x 3.5” SAS/SATA HDDs or SSDs; or up to 10x 2.5” SAS/SATA HDDs or SSDs, and 10 NVMe drives
• Enable virtualization, medium density VM or VDI, and High-Performance Compute node workloads Increase efficiency and accelerate operations with autonomous collaboration The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for multiple operating environments, from on-premise to cloud to edge
| Processor | Processor Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
| RAM | Memory • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only |
| Drive Bays | Drive Bays Front bays: • 0 drive bay • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
| controllers,RAID | • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e |
| PSU | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -6 |
| Other | Cooling options Air cooling Fans • Standard (STD) fans, High performance SLVR fans or High performance GOLD fans • Up to seven cabled fans Dimensions • Height – 42.8 mm (1.68 inches) • Width – 482 mm (18.97 inches) • Depth – 734.95 mm (28.92 inches) – without bezel 748.79 mm (29.47 inches) – with bezel Form Factor 1U rack server Embedded Management • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module Bezel Optional LCD bezel or security bezel OpenManage Software • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin Mobility OpenManage Mobile Integrations and Connections • BMC Truesight • Microsoft System Center • OpenManage Integrations • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • OpenManage Connections • Nagios Core • Nagios XI Security • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ Embedded NIC 2 x 1 GbE LOM Network Options 1 x OCP 3.0 GPU Options Not supported Ports Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional) PCIe Up to 3 x PCIe Gen4 slots Operating System and Hypervisors • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport |
Chassis views and features
Front view of the system
Figure 1. Front view of the system 4x 3.5-inch drives
Figure 2. Front view of the system 8x 2.5-inch drives
Figure 3. Front view of the system 10x 2.5-inch drives
Figure 4. Front view of the system 8x 2.5-inch NVMe RAID
Figure 5. Front view of the system 0 drive
Rear view of the system
Figure 6. Rear view of the system No Riser 1, Riser 2, 1 PSU, No OCP

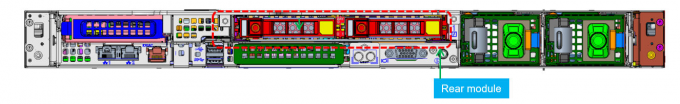

Figure 7. Rear view of the system Riser 1, Rear module

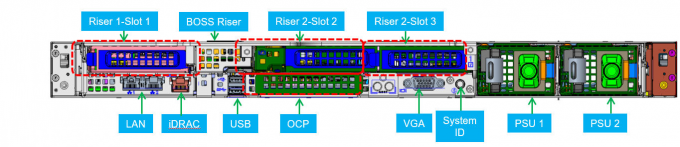

Figure 8. Rear view of the system Riser 1, Riser 2a

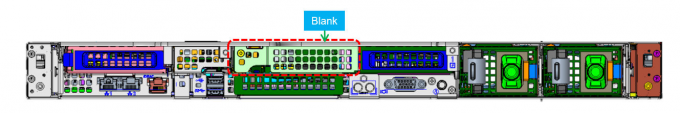

Figure 9. Rear view of the system Riser 1, Riser 2b or 2c, 1 Blank
Inside the system
Figure 10. Inside the system 10x 2.5-inch + 3x Low profile
|
|
