| Model Number : | R550 |
| Price : | /pieces >=2 pieces |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Brand Name : | Dell Poweredge |
| Supply Ability : | /pieces >=2 pieces |
| Delivery Time : | 2-7 working days |
The Dell PowerEdge R550 is a powerful 2U rack server with dual-socket support for Intel Xeon Scalable 3rd generation processors. It supports up to 16 DDR4 DIMMs and offers flexible storage with up to eight 2.5-inch drives.
2U, versatile, value-optimized, and virtualization.The Dell EMC PowerEdge R550, with 3rd generation Intel® Xeon® Scalable processors, offers added flexibility.
The new Dell EMC PowerEdge R550 is a 2U, dual-socket server that offers the best value for organizations seeking the latest processing, I/O, and storage capabilities. It lets you:
• Add additional power and cores: It offers up to two 3rd generation Intel Xeon Scalable processors with up to 24 cores per socket
• Choose faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
• Improve throughput and reduce latency: With up to 3 PCIe Gen4 slots and 1 PCIe Gen3
• Include flexible storage: Supports up to 16x 2.5” SAS/SATA hard drives or SSDs or up to 8x 3.5” SAS/SATA hard drives or SSDs
• Support light duty virtualization and small IT infrastructure workloads.
| R550 | Technical Specification | |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor | |
| Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 2933
MT/s • Supports registered ECC DDR4 DIMMs only | |
Storage controllers | • Internal Controllers: PERC H345, PERC H355, HBA355i, PERC H745,
PERC H755, S150 • Internal Boot: Internal Dual SD Module, USB, Boot Optimized
Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSDs • External PERC (RAID): PERC H840 • External HBA (non-RAID): HBA355e | |
| Drive bays | Front bays: • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 8 x 2.5-inch SAS/SATA (HDD) max 61.44 TB | |
| Power Supplies | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap
redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap
redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc
to -60Vdc power input) | |
| Fans | • Standard (STD) fans • Up to five cabled fans | |
| Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 721.69 mm (28.72 inches) with bezel 685.78 mm (27.00 inches) without bezel | |
| Form Factor | 2U rack server | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module | |
| Ports | Front Ports • 1 x Dedicated iDRAC (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA | Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x VGA |
Internal Ports • 1 x USB 3.0 (optional) | ||
| PCIe | 3 x PCIe Gen4 slots + 1 x PCIe Gen3 slot • 3 x16 Gen4 low profile • 1 x8 Gen3 (x4 lane) low profile | |
System overview
The Dell™ PowerEdge™ R550 is Dell’s latest 2-socket, 2U rack server designed to run complex workloads using highly scalable memory, I/O, and network options. The system features the 3rd Generation Intel® Xeon Scalable Processor , up to 16 DIMMs, PCI Express® (PCIe) 4.0 enabled expansion slots, and a choice of network interface technologies to cover NIC. The PowerEdge R550 is a general-purpose platform capable of handling demanding workloads and applications, such as data warehouses, e-commerce, databases, and high-performance computing (HPC).
Front view of the system
Figure 1. Front view of 8 x 3.5-inch drive system
Figure 2. Front view of 8 x 2.5-inch SAS/SATA drive system
Figure 3. Front view of 16 x 2.5-inch SAS/SATA drive system

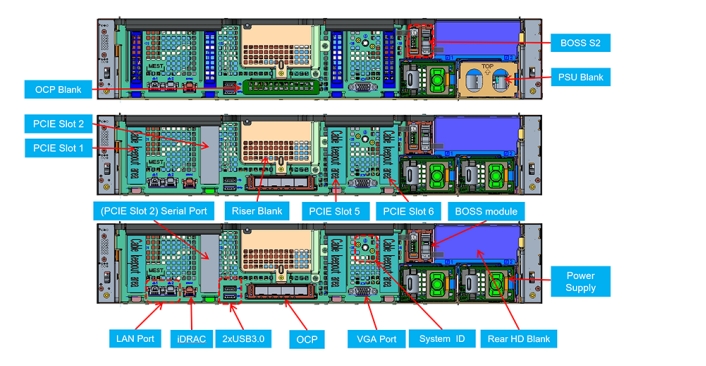

Figure 4. Rear view of the system
Figure 5. Inside the system 8 x 2.5-inch
|
|
