Beijing Yuchuang Qiji Technology Development Co., Ltd.
1 Years
| Ask Lasest Price | |
| Price : | /pieces >=2 pieces |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Brand Name : | HPE |
| Model Number : | DL380 |
| Supply Ability : | /pieces >=2 pieces |
| Delivery Time : | 2-7 working days |

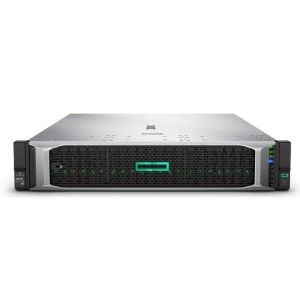

Introducing the HPE ProLiant DL380 Gen10 12LFF, a powerhouse server designed for scalability and performance in diverse IT environments. Equipped with dual Intel Xeon Scalable processors and supporting up to 3TB of DDR4 memory, it delivers exceptional compute power for virtualization, databases, and high-performance computing. Featuring 12 x 3.5" hot-plug drive bays, the DL380 Gen10 offers extensive storage capacity with advanced RAID options to ensure data protection and availability.
Key specifications include:
Designed for efficiency and reliability, the ProLiant DL380 Gen10 12LFF is ideal for demanding workloads and business-critical applications. With robust security features and flexible expansion capabilities, it provides a solid foundation for business growth and innovation in today's digital landscape.
| Processor Type and Family | Intel Xeon Scalable Bronze, Silver, Gold, and Platinum |
| Number of processors | 1 or 2 |
| Number of processor cores | from 4 to 28, depending on the model |
| Processor cache | 8.25MB - 38.5MB L3, depending on model |
| Base processor speed | 3.8 GHz (maximum), depending on model |
| Memory type | HPE DDR4 SmartMemory and HPE Persistent Memory |
| Maximum Memory | 3TB with DDR4 128GB and 6TB with HPE Persistent Memory 2666 512GB Pack |
| Memory slots | 24 DIMM slots |
| Drive type supported | 8 or 12 SAS/SATA/LFF SSDs; 8, 10, 16, 18, or 24 SAS/SATA/SFF SSDs; 2x M.2 SATA SSD (standard) in main riser, depending on configuration; 6 additional SFF drives or 3 LFFs in the rear bay and 2 additional SFF drives or 2 Dual UFF drives in the rear bay; 20 additional NVMe SFF drives; NVMe support via Express Bay with maximum storage limit |
| Infrastructure management | HP iLO standard with Intelligent Provisioning (embedded), HP OneView Standard (requires download) (standard), HP iLO Advanced, and HP OneView Advanced (optional license) |
| Expansion slots | 8 PCIe 3.0 |
| Type of NICs | HP 331i 1 Gb/s Ethernet Adapter 4 ports per controller and/or optional HP FlexibleLOM adapter (depending on model) |
| Storage controllers | 1 HP Smart Array S100i Controller and/or 1 HP Smart Array P408i-a Controller and/or 1 HP Smart Array P816i-a Controller and/or 1 HP Smart Array E208i-a Controller, depending on model |
| Form factor | 2U |

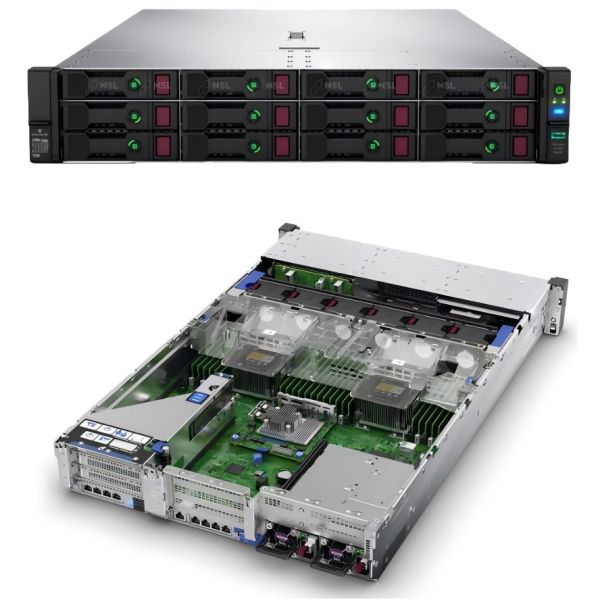

12+3LFF
12+2LFF

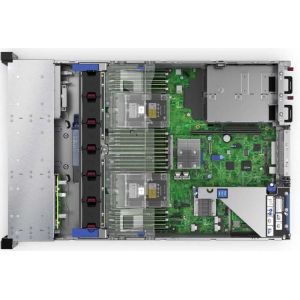

1. Fan cage shown with 6 standard Hot-plug fans (High Performance
temperature fans optional)
9.. (Under) Hot Plug redundant HPE Flexible Slot Power supplies
2. 2 Processors, heatsink showing
10. Connection for second (optional) riser (Requires second CPU)
3. Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery
11. Embedded 4x1Gbe NIC (if equipped)1
4. DDR4 DIMM slots. Shown fully populated in 24 slots (12 per
processor)
12. Primary PCIe riser, standard (Optional double wide GPU riser)
5. MicroSD card slot (Optional Dual Micro-SD option)
13. FlexibleLOM slot (Optional, depending on model selected)
6. Internal USB 3.0 connector
14. X4 SATA ports (1, 2 and 3)
7. Chassis intrusion detection connector
15. Clear air baffle
8. Optional HPE Smart Array (P408i-a shown)Clear air baffle
1. Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped
standard, not shown), optional 2SFF rear drives
9. Power supply Power LED
2. Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown,
requires second riser card, and second processor). Showing optional
2 SFF rear
10. HPE Flexible Slot Power Supply bay 2 (800W shown)
3. Optional serial port 11. VGA connector
4. Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported
in 24 SFF or 12 LFF front end)
12. Embedded 4 x 1GbE Network Adapter (if equipped) 1
5. Power supply Power connection
13. Dedicated iLO management port
6. Power supply Power LED
14. USB connectors 3.0 (2)
7. HPE Flexible Slot Power Supply bay 1 (800W shown)
15. Unit ID LED
8. Power supply Power connection
16. FlexibleLOM ports (4 x 1GbE shown); optional, depending on mode
|
|
