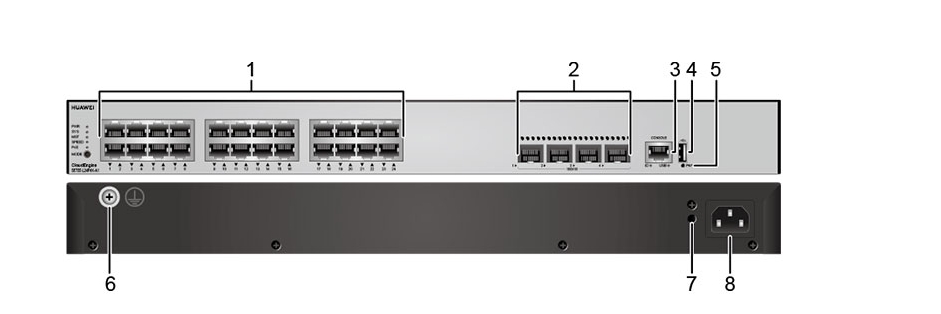

Huawei S5735-L24P4X-A1 switch with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, PoE+, AC power fixed, which is one model of Huawei S5735-L series switch.
CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next generation, high performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.
24 x 10/100/1000Base-T ports
4 x 10 GE SFP+ ports
AC power supply
PoE+
Forwarding performance: 96 Mpps
Switching capacity: 128 Gbps/336 Gbps
S5735-L24P4X-A1 Specification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 42.4 W |
| Typical heat dissipation [BTU/hour] | 144.67 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| MTBF [year] | 52.74 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 38.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols providing higher performance and more powerful service processing capabilities for networks.
Table 1 shows the quick spec.
| Product Model | S5735-L24P4X-A1 |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Typical power consumption [W] | 42.4 W |
| Typical heat dissipation [BTU/hour] | 144.67 BTU/hour |
Table 2 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
able 3 shows the comparison.
| Product Model | S5735S-L12T4S-A S5735S-L12P4S-A | S5735S-L24T4S-A S5735S-L24P4S-A | S5735S-L24T4X-A S5735S-L24P4X-A | S5735S-L48T4S-A | S5735S-L48T4X-A S5735S-L48P4X-A | S5735S-L32ST4X-A |
| Forwarding Performance | 24 Mpps | 42 Mpps | 96 Mpps | 78 Mpps | 132 Mpps | 108 Mpps |
| Switching Capacity | 32 Gbit/s/336 Gbit/s | 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s | 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s | 144 Gbit/s/432 Gbit/s |
| Fixed Ports | 12 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735S-L12P4S-A: Supported CloudEngine S5735S-L24P4S-A: Supported CloudEngine S5735S-L24P4X-A: Supported CloudEngine S5735S-L48P4X-A: Supported Other: Not supported | |||||
|
|
